02.01 |

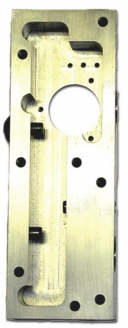

ALUMINUM BODY SUB ASSEMBLY |
1 |
02.15 |
6BA*3/8 CAP HEAD SCREW |
2 |
|
02.02 |
PLUNGER SPACER |
1 |
02.16 |
BODY COVER COMPLETE |
1 |
|
02.03 |
PLUNGER |
1 |
02.17 |
6BA*3/16 GRUB SCREW |
2 |
|
02.04 |
PLUNGER CORD |
1 |
02.18 |
8BA*1/4 CAP HEAD SCREW |
2 |
|
02.05 |
PLUG |
1 |
02.19 |
3/16*3/16 BUTTON HEAD SCREW |
2 |
|
02.06 |
CORE |
1 |
02.20 |
6BA*3/8 CAP HEAD SCREW |
2 |
|
02.07 |
SPRING |
1 |
02.22 |
END PLATE |
1 |
|
02.08 |
DRUM |
1 |
02.23 |
BAND |
1 |
|
02.09 |
ENCODER ASSEMBLY |
1 |
02.24 |
BLANKING PLUG |
2 |
|
02.093 |
ENCODER CLAMPS |
3 |
02.25 |
GUIDE SCREW |
1 |
|
02.10 |
BAND CLAMPING PLATE (DRUM END) |
1 |
02.27 |
3/16 SPRING WASHER |
2 |
|
02.11 |
BAND SPACER |
1 |
02.28 |
3/16*3/16 GRUB SCREW |
1 |
|
02.12 |
BAND SPACER SHIM |
1 |
02.32 |
GUIDE |
1 |
|
02.13 |
3/16W*1/2 CAP HEAD SCREW |
7 |
02.33 |
6BA*1/2 CAP HEAD SCREW |
1 |
|
02.14 |
BAND CLAMPING PLATE (PLUNGER END) |
1 |
|
|
|
